Hydraulic stackers are the simplest, lowest-cost way to lift pallets to height: the operator raises the forks with a manual hydraulic pump and pushes the stacker by hand. With no battery, no charging and very little to service, a manual hydraulic stacker suits occasional-use stacking — feeding racking in a small store, loading benches and machines, or lifting the odd pallet in a unit that does not justify powered equipment.
GPC VULCAN hydraulic stackers — fixed fork
The UK-made GPC Industries VULCAN fixed-fork range conforms to CE standard EN 1757-1, with controlled lifting from the hydraulic pump and smooth travel on two 180mm swivel rear castors and 75mm front rollers. All three models carry 1,000kg, with lift heights to suit your racking: 1,600mm (STHI21Y), 2,500mm (STHI23Y) and 3,000mm (STHI24Y).

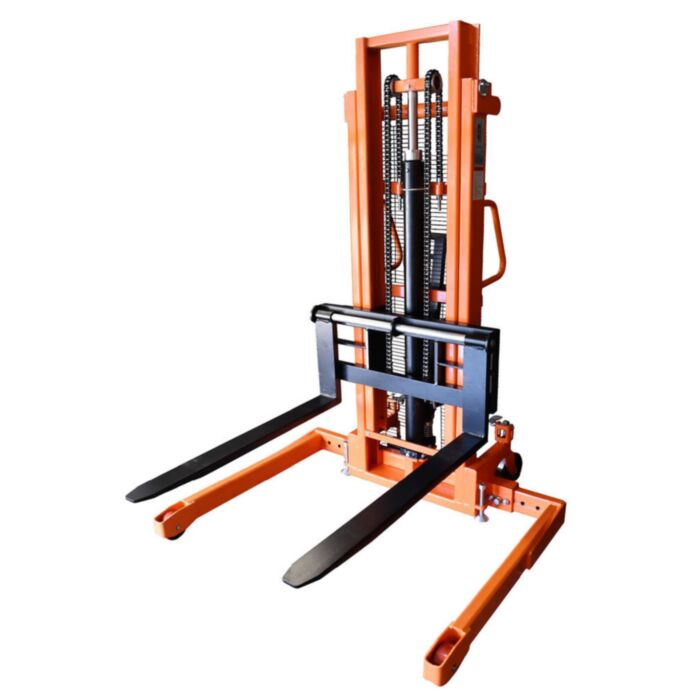

Hydraulic straddle stackers — adjustable fork
The VULCAN straddle versions (STHI26Y, STHI27Y and STHI28Y) add manually adjustable forks and straddle legs that pass either side of the pallet — the right choice for bottomless and Euro pallets, and for placing loads flush to the ground. Capacity and lift heights match the fixed-fork range: 1,000kg at 1,600mm, 2,500mm or 3,000mm.
Is a manual hydraulic stacker enough?
Pumping a full 1,000kg load to height takes real effort, so hydraulic stackers earn their keep where lifts are occasional. If your team is stacking many times an hour, step up to a semi-electric stacker (powered lift, manual travel) or a fully powered stacker. For ground-level moves only, a pallet truck is cheaper still — our guide to pallet stackers vs pallet trucks walks through the decision. See every type side by side on the main pallet stackers page.
Hydraulic stacker FAQs
What is a hydraulic stacker?
A manual stacker where the operator raises the forks with a hydraulic pump and pushes it by hand. With no battery or charging, there is very little to service.
Who makes the hydraulic stackers you list?
They are GPC Industries VULCAN stackers, manufactured in the UK, conforming to CE standard EN 1757-1.
What capacity do they have?
All three fixed-fork models carry 1,000 kg.
What lift heights can I choose?
1,600 mm (STHI21Y), 2,500 mm (STHI23Y) and 3,000 mm (STHI24Y) on the fixed-fork range.
What is a hydraulic straddle stacker?
The STHI26Y, STHI27Y and STHI28Y add manually adjustable forks and straddle legs that pass either side of the pallet. They suit bottomless and Euro pallets and place loads flush to the ground.
Do the straddle models lift as high?
Capacity and lift heights match the fixed-fork range: 1,000 kg at 1,600 mm, 2,500 mm or 3,000 mm.
How do they move around?
They run on two 180 mm swivel rear castors and 75 mm front rollers.
Is a manual stacker enough for my site?
Pumping a full 1,000 kg load to height takes real effort, so they suit occasional lifts. If your team stacks many times an hour, step up to a semi-electric or fully powered stacker.
Do I need a stacker or just a pallet truck?
If loads only move at ground level, a pallet truck is cheaper still. Our pallet stackers vs pallet trucks guide walks through the decision.
