What's the difference between rubber and nylon dock bumpers?

Rubber dock bumpers are the traditional choice — angled Type 2 rectangular pads with counterbored fixing holes, available in a range of thicknesses. Nylon bumpers are made from a modified cast nylon with much higher resistance to wear and abrasion and greater impact strength, so they last longer on high-frequency bays and also help guide the trailer into accurate alignment on approach.

What is a Type 3 dock bumper?

Type 3 is a narrower rectangular rubber bumper profile designed to suit mini dock levellers, fixed with 12mm diameter fixings through incorporated fixing holes, as opposed to the wider Type 2 profile used on standard bays.

What is a D-section dock bumper and when should I use one?

The D-section bumper is a 100 x 100mm extruded rubber profile supplied in 1m, 2m and 3m lengths that joins end to end for continuous protection along a dock edge, wall or column — useful where you need to protect a run rather than a single impact point. It's available with counterbored fixing holes or plain for site drilling, and can take an optional steel fixing strip through its hollow centre for extra security on heavy-traffic runs.

How are dock bumpers fixed in place?

Rubber and nylon bumpers use counterbored fixing holes so the fixing head sits below the impact face. Rubber Type 2 bumpers typically use 16mm diameter fixings with a large washer; Type 3 uses 12mm fixings. Nylon bumpers also need a large 2.5" OD washer per hole to spread the load through the softer nylon face. D-section bumpers can add a steel fixing strip through the centre for a more secure full-length fix.

Can dock bumpers be cut or shaped to fit a non-standard bay?

Yes. Both the rubber and D-section ranges can be cut, drilled or shaped to suit specific requirements, and special D-section lengths are available to order alongside the standard 1m, 2m and 3m sections.

Do nylon bumpers come with extra cushioning?

Two of the nylon sizes, TWB-1018 and TWB-1030, are also available with a 50mm rubber backing spacer fitted behind the nylon face, adding stand-off and extra cushioning where a harder nylon face alone would give too little give.

What else does a loading bay need alongside dock bumpers?

Bumpers protect the structure from vehicle impact, but a complete bay also needs wheel chocks to stop vehicle movement during loading, dock lights for visibility inside the trailer, and dockboards or dockplates to bridge the gap between dock and vehicle bed.

Are dock bumpers made in the UK?

Most Thorworld dock bumpers are designed and manufactured in the UK at Thorworld's Chesterfield factory.

Dock Bumpers | Rubber & Nylon Loading Dock Buffers

Dock bumpers (also called dock buffers) take the impact when a reversing trailer meets the loading bay — protecting the dock face, the building and the vehicle's rear frame from repeated low-speed strikes. On a busy bay that impact happens dozens of times a day, and it's far cheaper to replace a bumper than to rebuild a dock edge. All bumpers here are by Thorworld Industries, with most products designed and made at their Chesterfield factory.

Three bumper types

Rubber dock bumpers — traditional Type 2 rectangular buffers in various sizes and thicknesses, with angled edges and counterbored fixing holes that protect the fixings themselves from impact damage. A narrower Type 3 profile is also available, sized for mini dock levellers. Where extra stand-off is needed, dock bumper supports add thickness behind the pad.

Nylon dock bumpers — manufactured from a modified cast nylon with high resistance to wear and abrasion and greatly enhanced impact strength. Nylon gives an extremely hardwearing, long-life bumper that also helps guide accurate vehicle alignment on every approach — a good pick for high-frequency bays where rubber pads wear through. Two of the nylon sizes (TWB-1018 and TWB-1030) are also available with a 50mm rubber backing spacer, giving extra stand-off and cushioning.

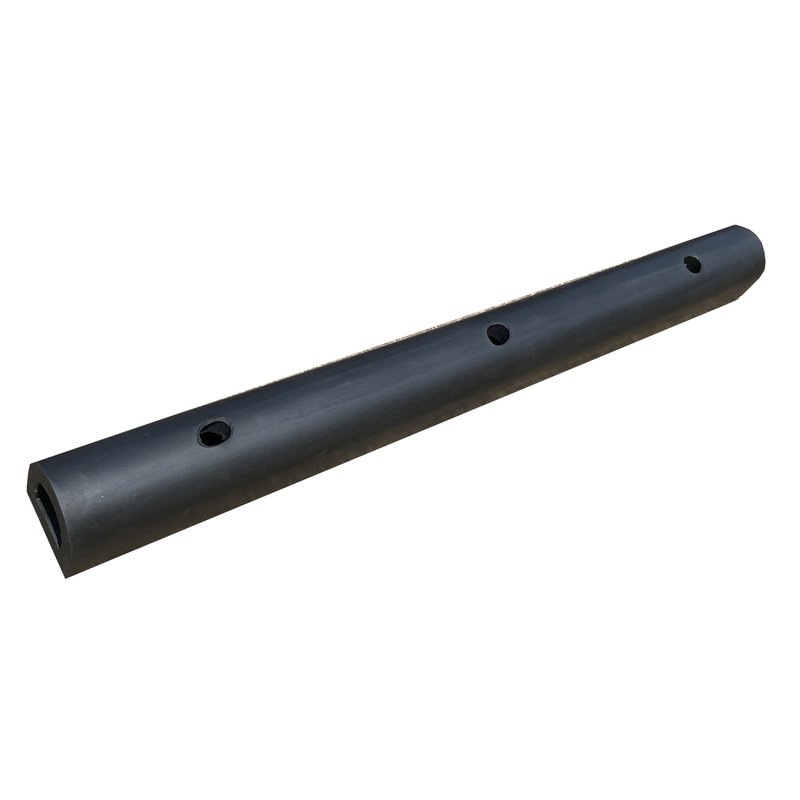

Extruded D-section bumpers — a 100 × 100 mm extruded rubber D-profile supplied in 1 m, 2 m and 3 m lengths (special lengths on request). Sections assemble end to end for long continuous runs of protection along dock edges, walls and columns, and can be supplied with pre-drilled counterbored fixing holes or plain for site drilling.

Choosing between rubber, nylon and D-section

For a standard single- or double-door bay, rectangular rubber bumpers are the usual choice — proven, straightforward to fix, and available in a range of thicknesses to match the required stand-off. Step up to nylon where trailers hit hard and often: distribution hubs and cross-dock bays wear rubber pads through faster than nylon, and nylon's harder face also helps guide the trailer into alignment rather than just absorbing the hit. D-section bumpers suit a different problem — protecting a long run of dock edge, wall or column rather than a single point of impact, since sections join end to end with no gap in coverage. All three types can be cut, drilled or shaped to suit non-standard openings; ask if your bay doesn't match a listed size.

Fixings and installation

Bumpers are only as good as what holds them on. Rubber and nylon bumpers use counterbored fixing holes so the impact loads onto the pad rather than the fixing head; nylon bumpers need a large-diameter washer per hole to spread the load through the softer face. D-section bumpers can take an optional steel fixing strip through the hollow centre for a more secure full-length fixing on heavy-traffic runs. Matching Thorworld fixings, washers and fixing strips are in our loading bay accessories range, so you can order the bumper and its correct fixing kit together.

Completing the bay

Bumpers protect the structure; the rest of the bay needs protecting too. Pair them with wheel chocks to stop vehicle movement during unloading, dock lights for visibility inside trailers, and dockboards and dockplates to bridge the dock-to-vehicle gap. Our loading bay safety guide covers how the pieces fit together.

Choosing the right chock for the bay as well? Our wheel chocks buying guide compares rubber, steel, aluminium and plastic chocks and how to place them safely.

Our dock bumpers are part of the Thorworld loading bay range, alongside dockboards, wheel chocks and dock lights.
