Trailer Safety Supports

Trailer safety supports — also called trailer support legs or trailer prop stands — hold a semi-trailer steady while it is parked and being loaded without its tractor unit. KC Supply stocks the Thorworld Trailer Safety Support, a wheeled, ratchet-adjustable prop rated to 36,500 kg, designed and manufactured in the UK at Thorworld's Chesterfield factory.

Why support a detached trailer?

When the cab is uncoupled, a semi-trailer rests on its landing legs — and its balance changes as goods and fork lift trucks move over the deck. Weight concentrated at the front of the trailer during loading or unloading can tip the trailer forwards onto its nose, and landing legs themselves can fail under repeated fork-truck traffic. A trailer safety support placed under the fifth wheel plate carries that load, preventing nose-tip and protecting against landing-leg collapse. HSE workplace transport guidance highlights trailer tip-over during loading as a known risk, so supports of this kind are a standard control on busy loading docks.

How the Thorworld trailer support works

The unit wheels into position under the fifth wheel plate using its handle, then the ratchet raises the support head to meet the plate — no lifting or pumping gear required. Key specifications from the manufacturer:

• Supporting capacity: 36,500 kg (model TWCJ-3951-3)
• Height range: 990–1,295 mm, ratchet-adjusted to suit the trailer
• Unit weight: 60 kg, with wheels and a handle for one-person positioning
• Finish: high-visibility yellow gloss so the prop is obvious on the yard

The safety sign matters

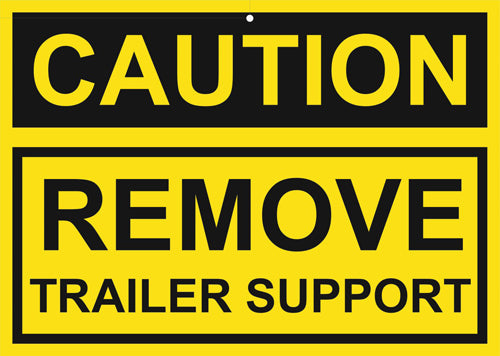

The biggest operational risk with any trailer prop is a driver coupling up and pulling away while the support is still in place. Thorworld's answer is a purpose-made "Caution — Remove Trailer Support" safety sign (TWCJ-SS-RPVC), pre-fitted with a clip that attaches to a standard air hose fitting — the driver physically encounters the warning when connecting the lines. We recommend ordering a sign with every support and building both into your loading-dock procedure.

Choosing and using trailer supports

Check the height under your trailers' fifth wheel plates falls within the 990–1,295 mm range, and site the support on firm, level ground. One support per trailer being worked is the norm; yards that load multiple detached trailers at once should hold one per bay. As lifting/supporting equipment used at work, trailer supports fall under PUWER — keep them in good order and include them in pre-use checks. Your own risk assessment should confirm the arrangement for your site.

Ordering for a new dock or fitting out a distribution yard? See our container access ramps and access platforms & steps for the rest of the loading-bay kit, or contact the KC Supply team for advice on trailer safety equipment.

See how trailer supports fit into a safe ground-level goods-in setup in our loading bay equipment guide.

Trailer safety support FAQs

What is a trailer safety support?

A wheeled, ratchet-adjustable prop that sits under the fifth wheel plate of a parked, detached semi-trailer. It is also called a trailer support leg or trailer prop stand.

Why do detached trailers need supporting?

With the cab uncoupled, weight from goods and fork trucks can tip the trailer forwards onto its nose during loading and unloading, and the landing legs themselves can fail. The support carries that load.

What is the capacity of the Thorworld support?

The Thorworld Trailer Safety Support (model TWCJ-3951-3) is rated at 36,500 kg.

What height range does it cover?

990 to 1,295 mm, adjusted by ratchet to meet the underside of the fifth wheel plate. Check your trailers fall within that range before ordering.

How is it positioned?

It has wheels and a handle, and the unit weighs 60 kg, so one person can wheel it under the fifth wheel plate and then ratchet the head up to the plate.

What is the safety sign for?

The biggest risk is a driver coupling up and pulling away with the support still in place. The optional Caution - Remove Trailer Support sign (TWCJ-SS-RPVC) is pre-fitted with a clip that attaches to a standard air hose fitting, so the driver meets the warning when connecting the lines.

How many supports do I need?

One per trailer being worked is the norm. Yards that load several detached trailers at once should hold one per bay. Your own risk assessment should confirm the arrangement.

Does PUWER apply?

Trailer supports are work equipment, so keep them in good order and include them in pre-use checks.

What else belongs in a loading bay?

See container access ramps and access platforms and steps, or read our loading bay equipment guide.
