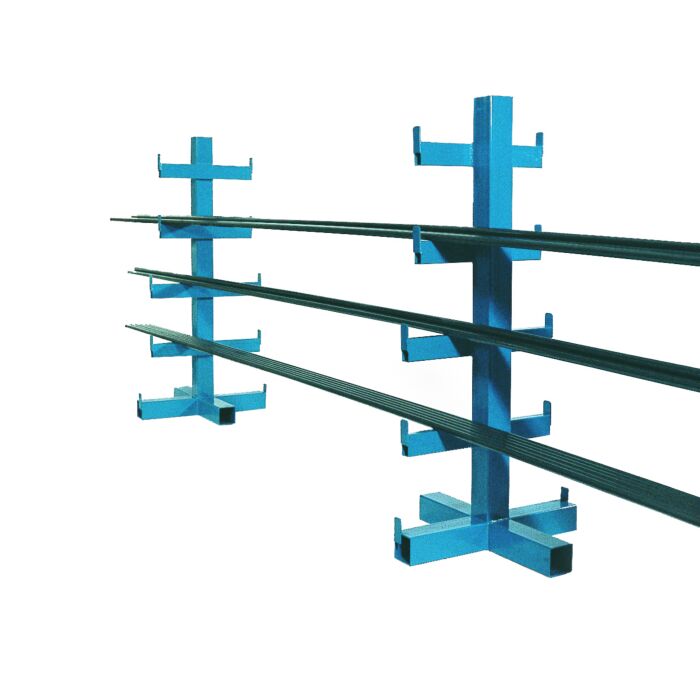

GPC Heavy Duty Bar Storage Rack, 500kg per Arm

The Owner's Insights on the Bar Storage Rack

Five hundred kilos per arm is the number that matters here. Long stock is heavy and it all lands on the arms, so arm rating is the spec to compare rather than overall capacity. Arms sit at 250mm centres, which gives you enough levels to separate sizes without the rack becoming a wall of steel.

Single or double sided. Double sided against nothing, in the middle of a workshop, gives you twice the storage in roughly the same floor area. Single sided goes against a wall.

The units can be drilled for floor fixing, and on a rack holding long bar I would always do it. Load heavy material at the base and keep the top levels for light stock. A tall rack loaded top-heavy with steel bar is a genuinely dangerous thing.

Why You'll Love this Bar Storage Rack

• 500kg load capacity per arm: takes serious weight of bar, tube or extrusion on every level.
• 250mm spacing between arms: enough levels to sort stock by size without wasting vertical space.
• Single or double sided: against a wall or free-standing in the middle of a workshop.
• Drillable for floor fixing: bolts down for stability, which matters on anything holding long heavy stock.
• Open arm design: load and pick long material from the side without lifting it over an upright.

Why You Should Consider GPC Racking

GPC state capacity per arm rather than a single headline figure for the rack, which is the honest way to spec cantilever storage. A rack quoted at a total tonnage tells you nothing about what one arm will take, and the arm is what fails.

Bar Storage Rack Specifications

Single or double sided?

Double sided belongs in the middle of a floor and gives you two faces for not much more footprint, so it is the better value per metre of storage. Single sided goes against a wall where double would waste a face. Work out where the rack is going first, then pick.

Why load heavy material at the base?

Centre of gravity. A cantilever rack loaded heavy at the top will go over, particularly while stock is being pulled from one side. Heavy at the base, light at the top, and bolt it to the floor. This is the single most common way bar racks cause injuries.

Delivery and unloading

A forklift is needed to unload these units. Call 020 3004 1152 with your stock lengths and weights and we will confirm the right configuration.

GPC Industries made-to-order: drum stores, Grenadier security cages, hazardous-substance cabinets, sheet and bar racks, smoking and cycle shelters, custom workbenches and bespoke configurations are built per order and typically delivered in 10–20 working days from order acceptance.

Larger units, oversized cages and project work may extend further. Lead time confirmed at order acceptance.

Delivered by UK pallet freight. Note: additional surcharges apply to Scottish Highlands, Islands and remote postcodes. For bulk orders or site-specific configurations, contact us.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
