Klime-Ezee Truck Dock Platform

Klime-Ezee Truck Dock Platform – 500kg SWL Mobile Loading Steps

Heavy-duty truck dock mobile steps designed for safe loading and unloading. Featuring a 45° descent angle, large platform, and 500kg safe working load.

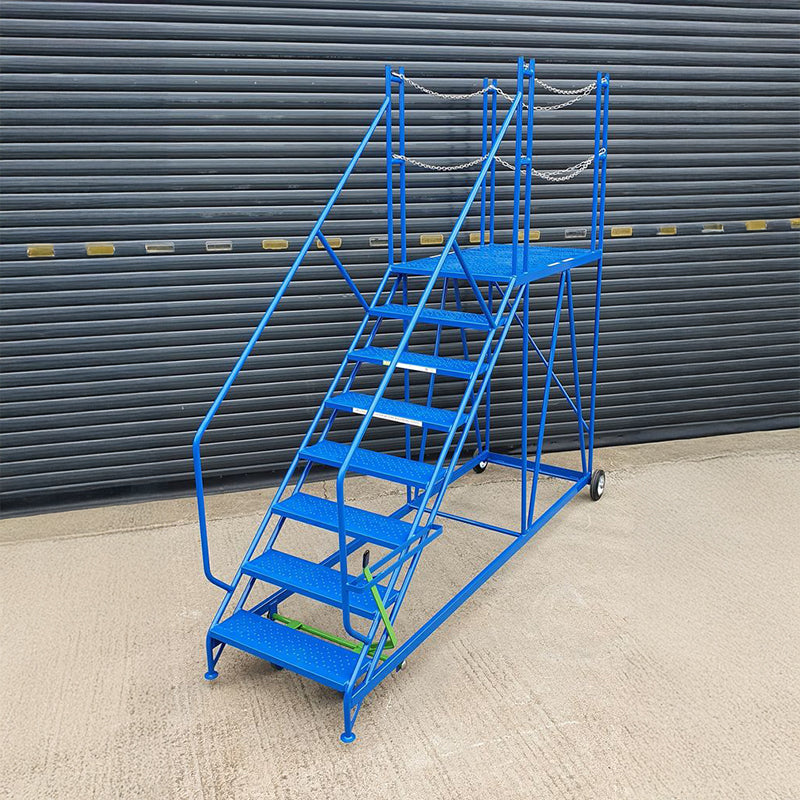

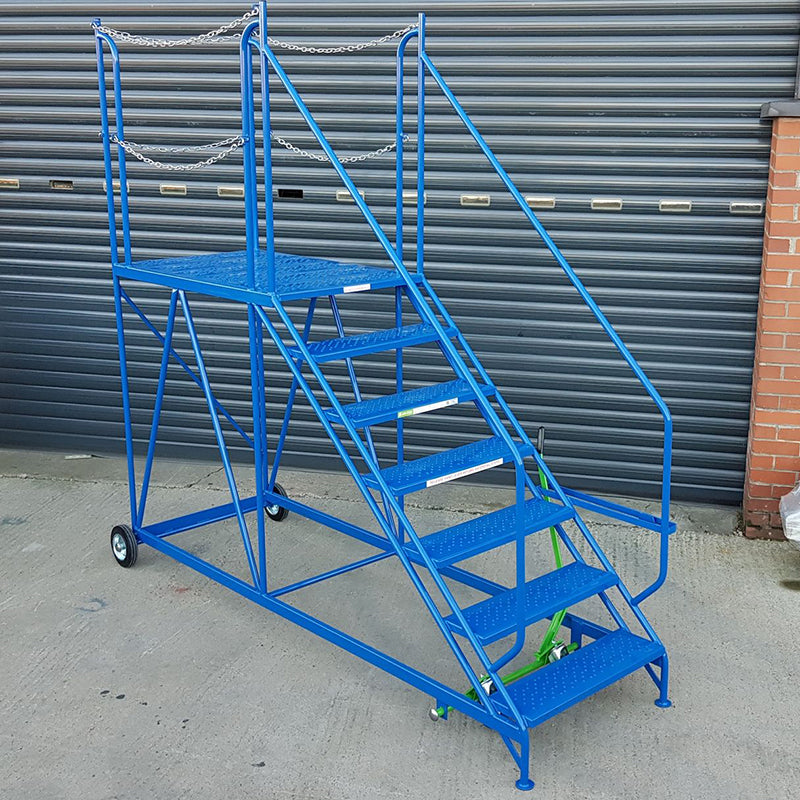

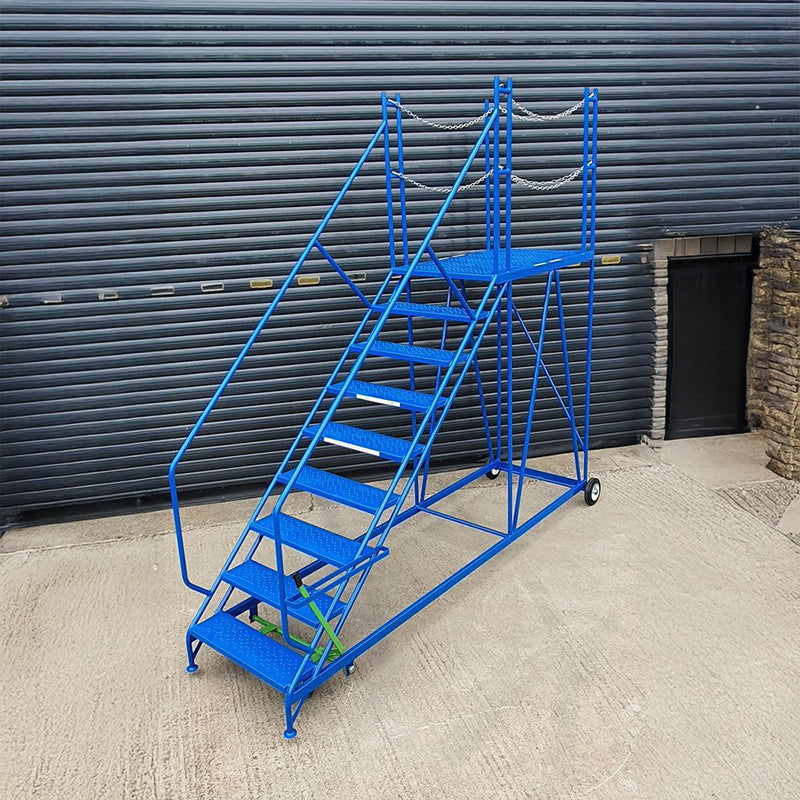

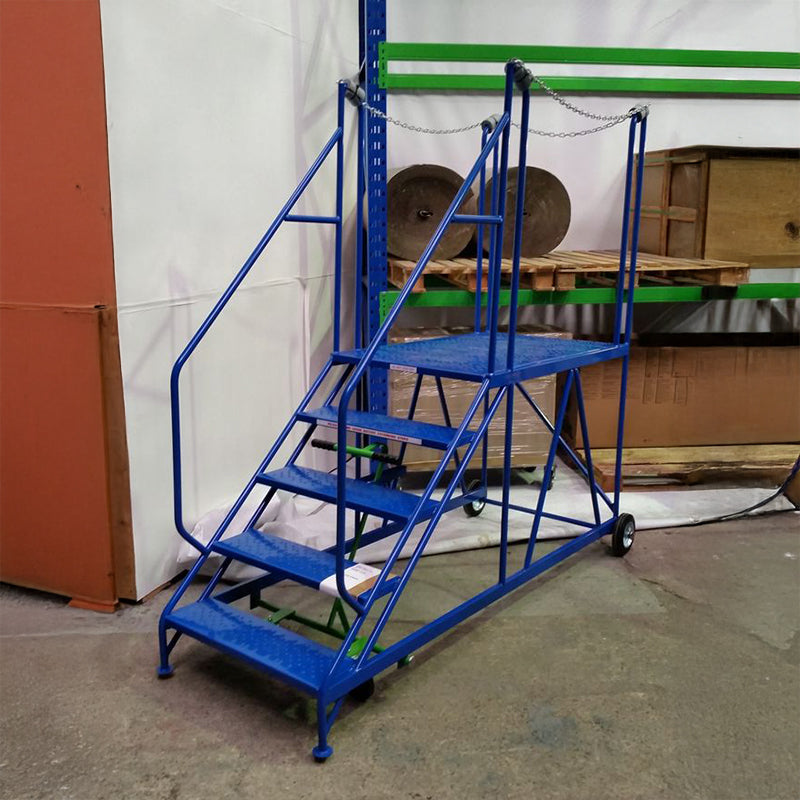

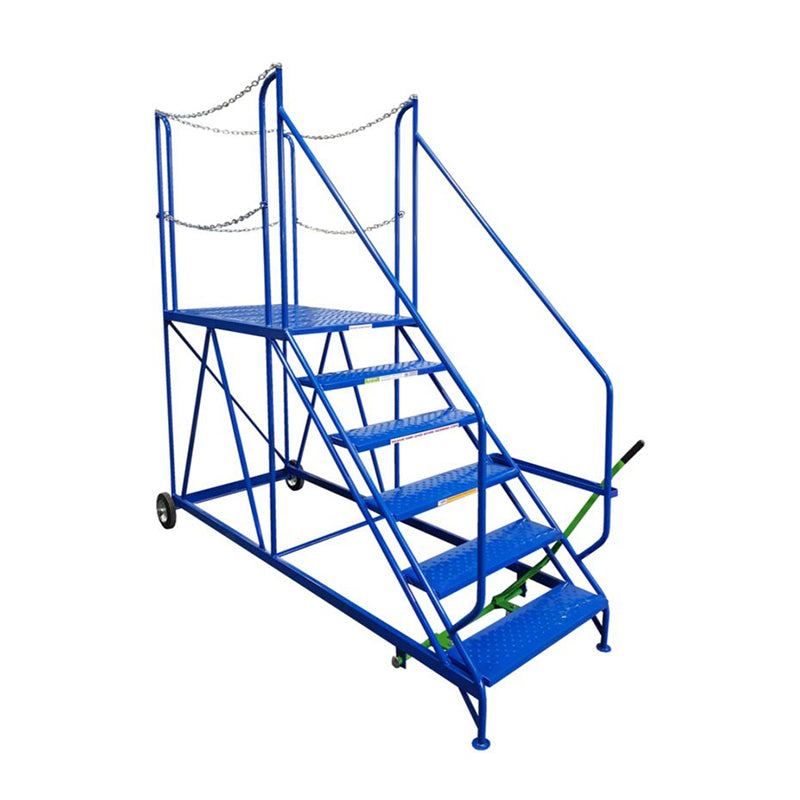

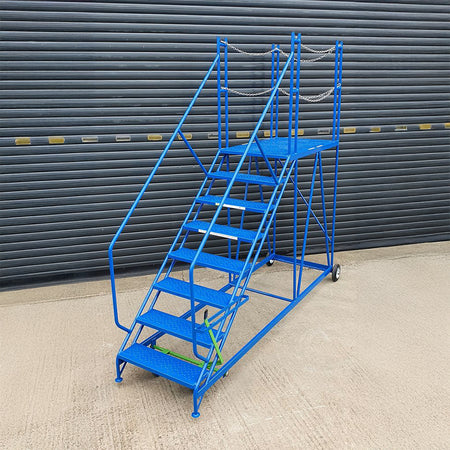

The Klime-Ezee Truck Dock Platform is a heavy-duty mobile access solution designed specifically for safe loading and unloading of vehicles at dock level. Built with a unique 45° angle of ascent, this design allows operators to descend the steps facing forward, improving visibility and significantly enhancing safety during vehicle access.

Engineered for demanding industrial environments, the Truck Dock Range features a 500kg safe working load (SWL) and a large 700 × 1200 mm platform, providing ample working space for operators handling goods, equipment, or materials. The wide 700 mm treads deliver secure footing when moving between dock level and vehicle height.

Each unit is supplied with three side exit safety chains as standard, offering controlled access while maintaining operator protection at height. For facilities that require a more enclosed working area, fixed side options are available through additional configuration options.

Designed with durability in mind, the Truck Dock Range is fully welded and delivered ready for immediate use, ensuring minimal setup and reliable performance in busy loading environments. The platform height range of 1000 mm to 1800 mm accommodates a wide variety of vehicle and dock configurations.

Tread finishes can be selected to suit specific workplace safety requirements, with punched metal or PVC covered treads available.

Key Features

• 500kg safe working load (SWL)

• Designed specifically for truck and dock access

• Unique 45° angle of ascent for forward-facing descent

• Large 700 × 1200 mm working platform

• Wide 700 mm treads for stable climbing

• Three side exit safety chains as standard

• Fully welded heavy-duty construction

• Delivered fully assembled and ready for use

• Side lever brake system operating front castors

• Strengthened treads across the entire staircase

• Multiple tread finish options available

Specifications

Model Dimensions & Technical Data

Important Information

All dimensions are approximate and shown in millimetres, with weights displayed in kilograms. The working height is provided as a general guide based on an approximate 750 mm reach range for the average user.

Products may undergo minor design improvements over time, and specifications may be updated without prior notice.

To maintain safe operation and long-term performance, a full maintenance inspection is recommended every six months.

This product is supplied fully assembled and ready to use upon delivery.

Additional Product Details

Angle of Ascent
45° – allowing operators to descend forward safely when accessing vehicle beds.

Platform Size
700 mm (W) × 1200 mm (D)

Chain Protection
Three side exit chains are supplied as standard. Fixed side options are available.

Strengthened Treads
All treads, including the platform, are reinforced with front tread strengtheners.

Brake System
Side lever brake operates the front castors for secure positioning.

Rear Leg Design
Rear legs splay at approximately 3° to improve overall stability during use.

Who It’s For

• Warehouse loading docks

• Logistics and distribution centres

• Freight and transport operations

• Vehicle loading and unloading tasks

• Facilities requiring safe dock access platforms

For safe and efficient access between loading docks and vehicles, the Klime-Ezee Truck Dock Platform delivers exceptional stability, large working space, and a high 500kg capacity designed for demanding industrial environments.

Klime-Ezee lead time: approximately 25 working days from order acceptance, plus 1–2 days for UK pallet freight delivery.

All Klime-Ezee mobile steps, platforms and industrial stairs are made-to-order in the UK at Klime-Ezee's Alfreton facility. Lead times are confirmed at order acceptance.

For volume orders or expedited delivery, contact us for a quote.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
