Thorworld Aluminium Dockboard

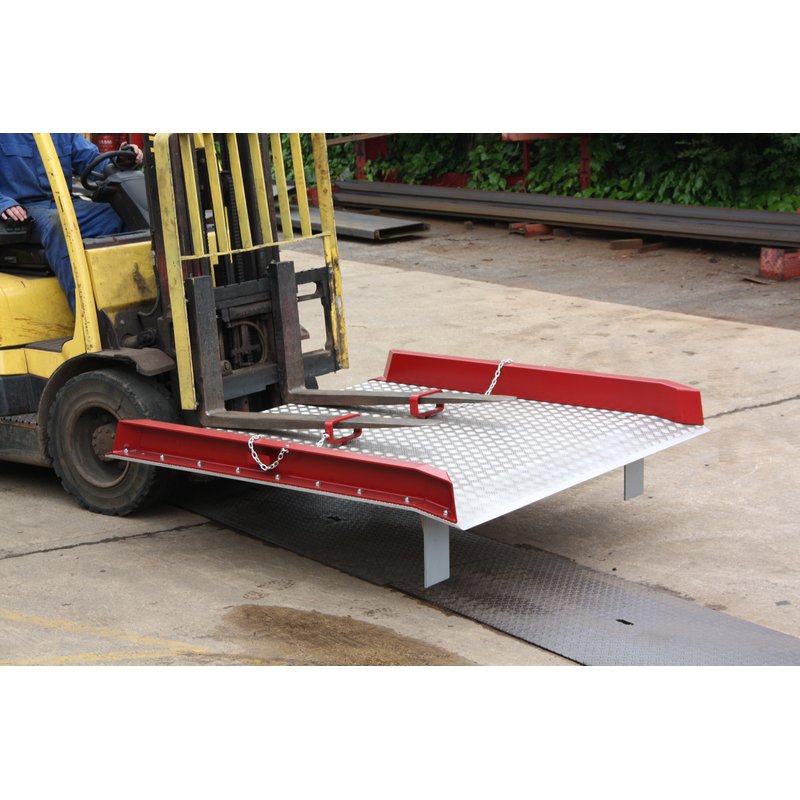

Dockboards provide an efficient and low cost way of loading and unloading vehicles from a loading dock, typically by means of fork lift truck. Dockboards are stand-alone products, requiring no installation, and therefore cause no disruption to the existing dock. For lighter duty applications please see our range of Dockplates.

Features & Specification

• Built-in treadplate antislip finish
• Manufactured from high tensile aluminium (beware of cheap, lower grade imitations)
• Crowned and bevelled for smooth operation
• Steel safety side curbs painted red

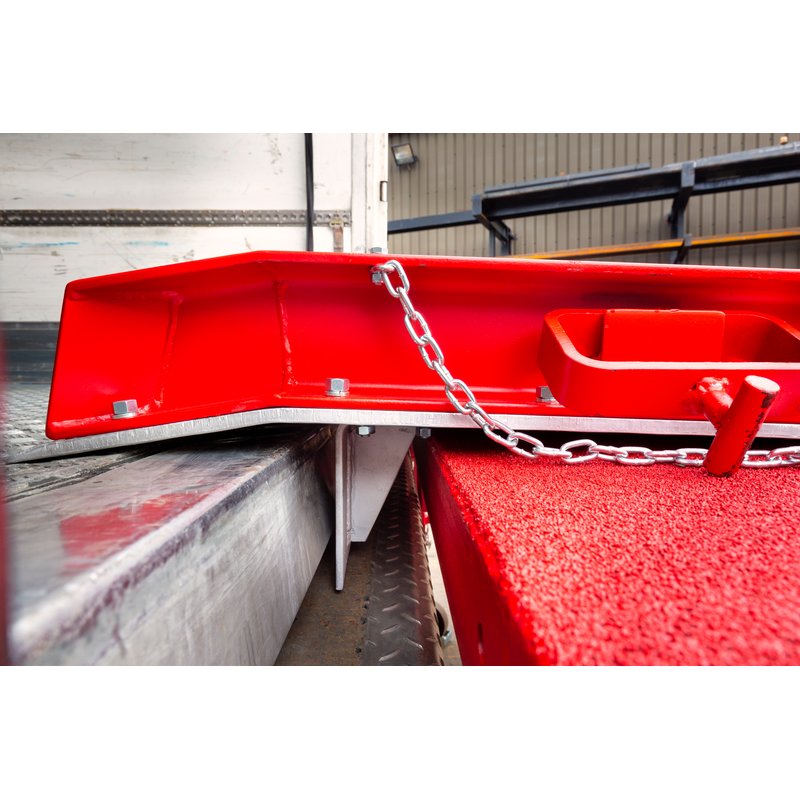

• One pair of locking legs to locate between vehicle and loading dock, to prevent movement
• Bend point 230mm in from the end of the plate; for compliance with BS EN 1398:2009 which calls for a minimum of 100mm engagement onto the vehicle bed

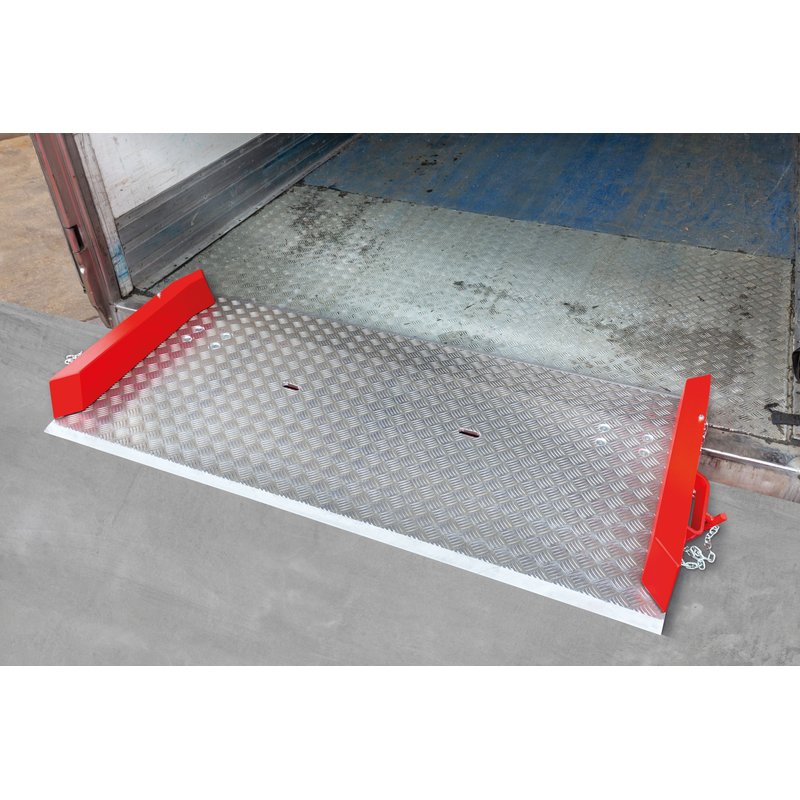

• When used to access vehicles below dock height, the majority of the plate must be positioned inside the vehicle

Options

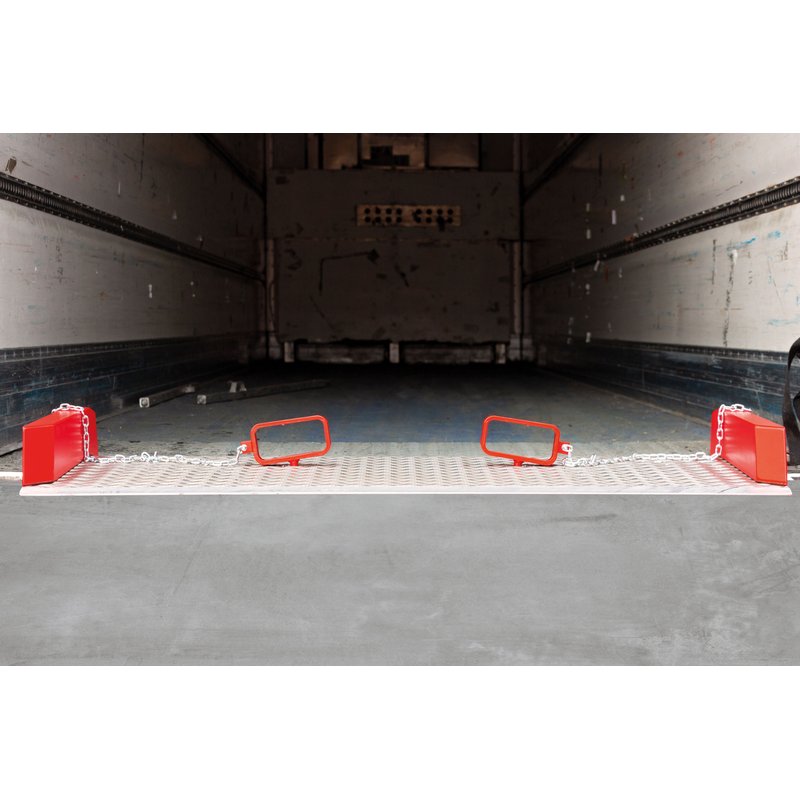

• Fork truck lifting handles (FTH-1) for movement – recommended for all Dock boards
• Additional set of fixed locking legs (FSL-1) for application where an excessive gap between vehicle and loading bay exists (150mm +)

Specifications

Manufacturer: Thorworld Industries Ltd. Most products designed and manufactured in the UK at Thorworld's Chesterfield factory.

Thorworld made-to-order: aluminium dockboards, dockplates, container access ramps, LED dock lights and 36,500 kg trailer safety supports are built per order and typically delivered in 2–4 weeks.

All Thorworld loading-bay equipment is UK manufactured. Delivered by UK pallet freight. Lead time confirmed at order acceptance. For dock-leveller projects, contact us for a free site survey.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
