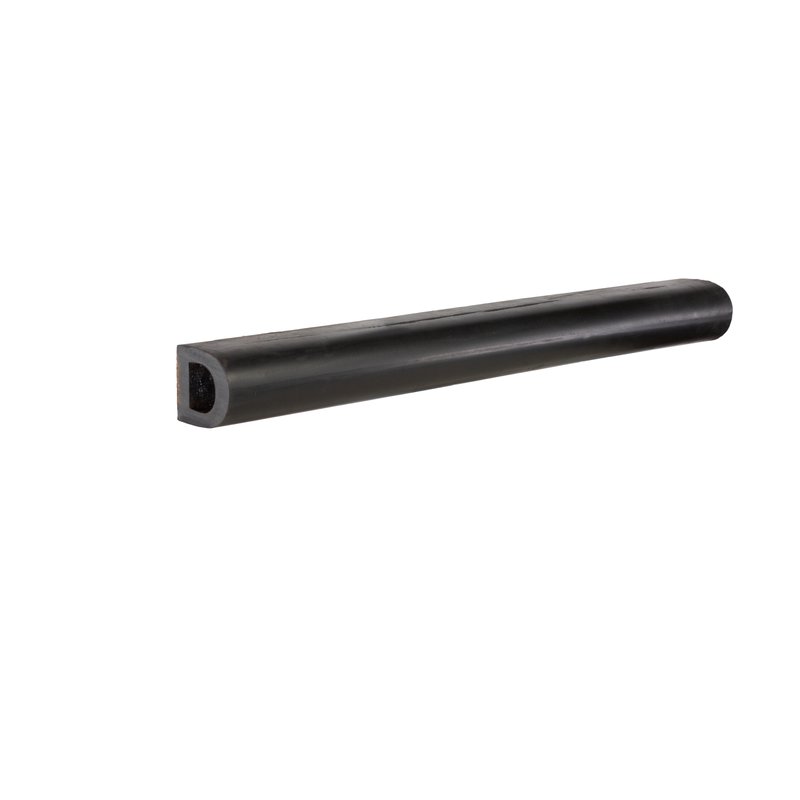

Extruded rubber D-section dock bumper for loading dock applications. 100mmx100mm D-section profile, typically supplied in 1m, 2m and 3m lengths (special lengths can be accommodated on request). Can be assembled end to end for long runs of protection.
Features & Specification
- 100mm x 100mm extruded rubber D-section profile
- Available in 1m, 2m or 3m lengths; specials available on request
- Can be assembled end to end for long runs

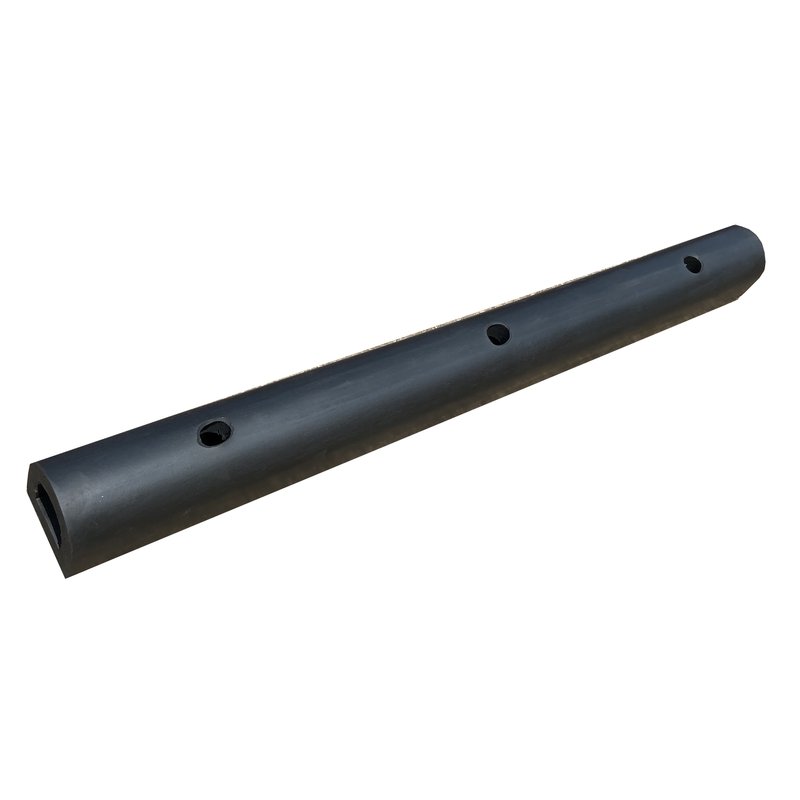

- Supplied with counterbored holes for fixing (reduces fixing damage); or plain for site drilling
- Fixings (sold separately): 12mm diameter (TWB-F1)
- Optional steel fixing strip (TWB-EST-1/2/3) — fits into the hollow centre to provide a more secure full-length fixing for heavy duty / heavy traffic applications
- Bumpers can be cut and drilled to suit specific requirements
Specifications
| Model |
Length |
Fixing holes |
Weight Kg |
| TWB-E-100-1 |
1m |
- |
10 |
| TWB-E-100-1-H |
1m |
3 counterbored holes (350mm centres), M12 fixings |
10 |
| TWB-E-100-2 |
2m |
- |
20 |
| TWB-E-100-2-H |
2m |
5 counterbored holes (425mm centres), M12 fixings |
20 |
| TWB-E-100-3 |
3m |
- |
30 |
| TWB-E-100-3-H |
3m |
7 counterbored holes (450mm centres), M12 fixings |
30 |
Manufacturer: Thorworld Industries Ltd. Most products designed and manufactured in the UK at Thorworld's Chesterfield factory.
