Traditional rubber loading dock bumpers (dock buffers) to minimise vehicle and loading dock damage, and ensure accurate vehicle alignment. All our dock bumpers feature counterbored holes to reduce damage to fixings. If additional thickness is required refer to our Dock Bumper Supports.
Features & Specification
- Type 2 — Rectangular Bumpers: Available in various sizes and thicknesses to suit your requirements. Standard units have angled edges for improved appearance. Fixings (sold separately): 16mm diameter; large 2.5” OD washer (TWB-W) also required for each fixing hole.
- Type 3 — Rectangular Narrow Width Bumpers: Particularly suited to mini dock levellers. Fixings (sold separately): 12mm diameter; fixing holes are incorporated.
- Counterbored fixing holes reduce damage to fixings
- Special / custom bumpers can be cut and shaped to suit specialist applications
Specifications
| Model |
W x L x T mm |
Type |
Weight Kg |
No. of holes |
Recommended fixings |

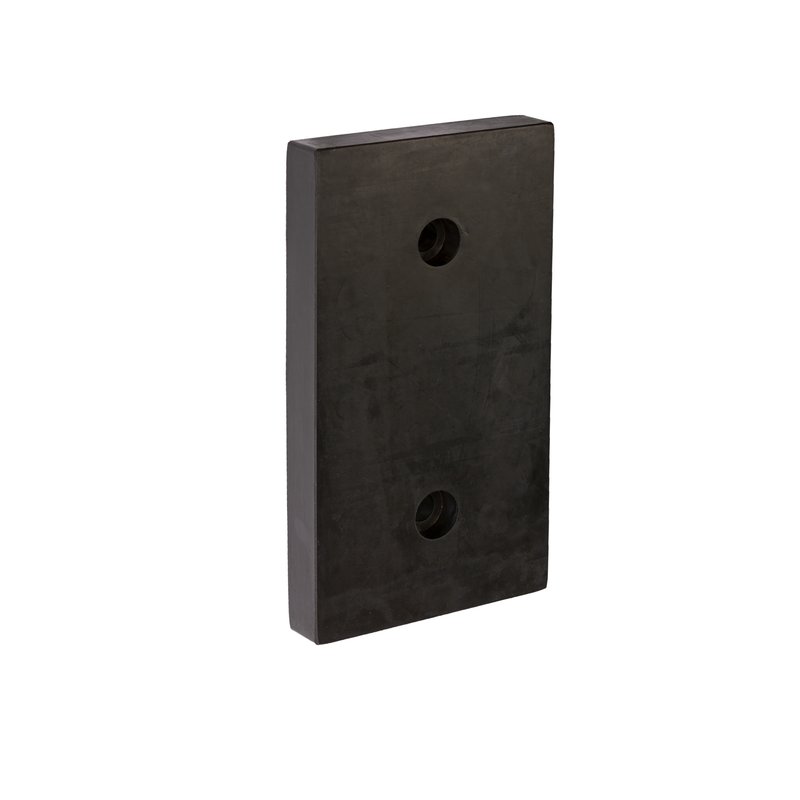

| TWB-1018-2 |
254x457x50 |
2 |
6 |
2 |
TWB-F4 |

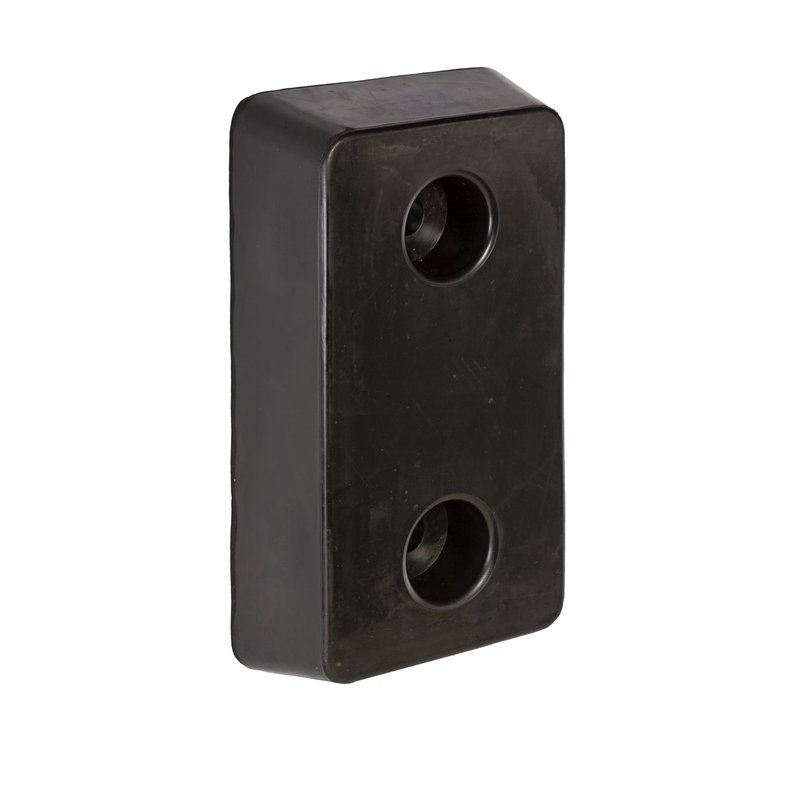

| TWB-1018-4 |
254x457x100 |
2 |
10 |
2 |
TWB-F4 |

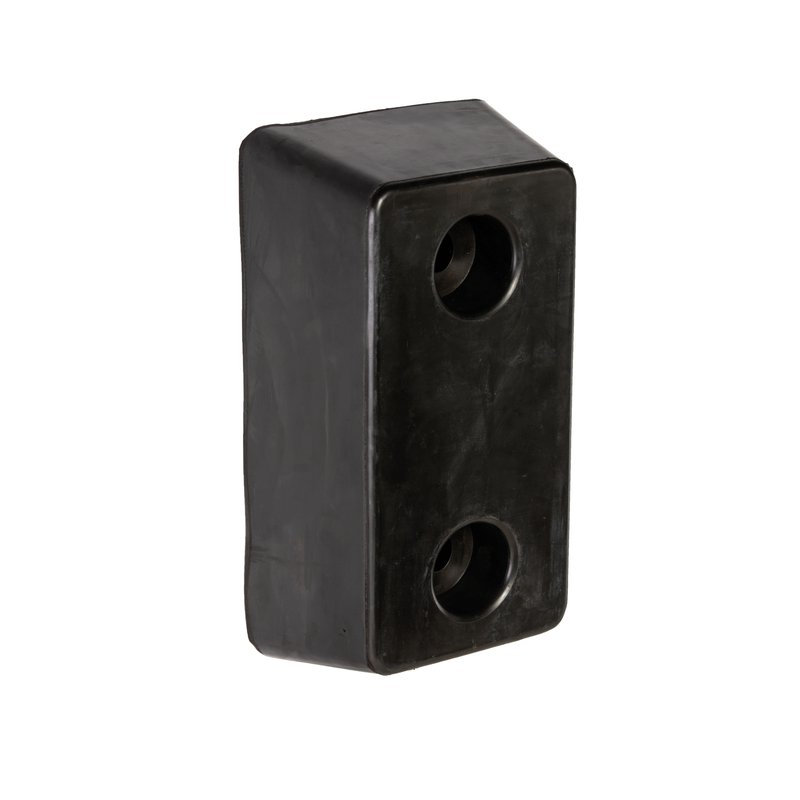

| TWB-1018-6 |
254x457x150 |
2 |
15 |
2 |
TWB-F5 |

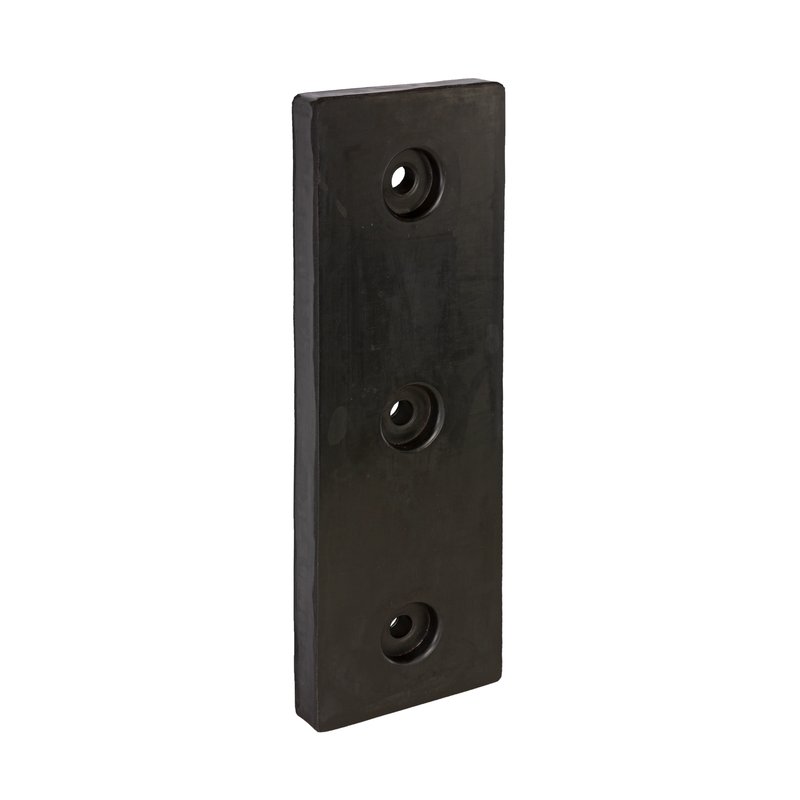

| TWB-1030-2 |
254x762x50 |
2 |
12 |
3 |
TWB-F4 |

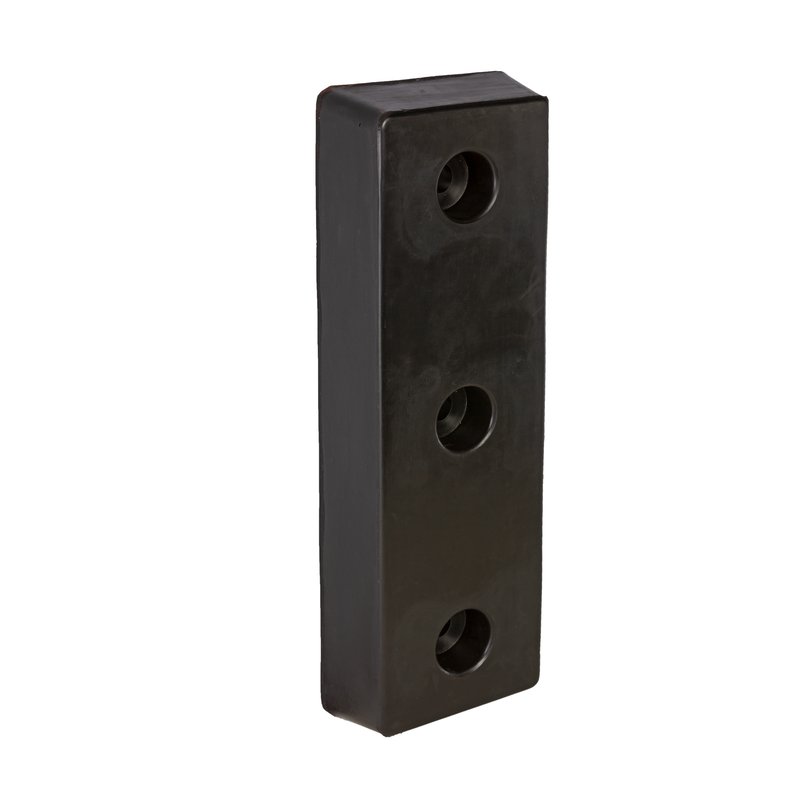

| TWB-1030-4 |
254x762x100 |
2 |
19 |
3 |
TWB-F4 |
| TWB-5 |
115x130x75 |
3 |
1.5 |
1 |
TWB-F4 |
| TWB-10 |
115x260x75 |
3 |
3 |
2 |
TWB-F4 |
| TWB-15 |
115x390x75 |
3 |
5 |
3 |
TWB-F4 |
| TWB-20 |
115x520x75 |
3 |
7 |
4 |
TWB-F4 |

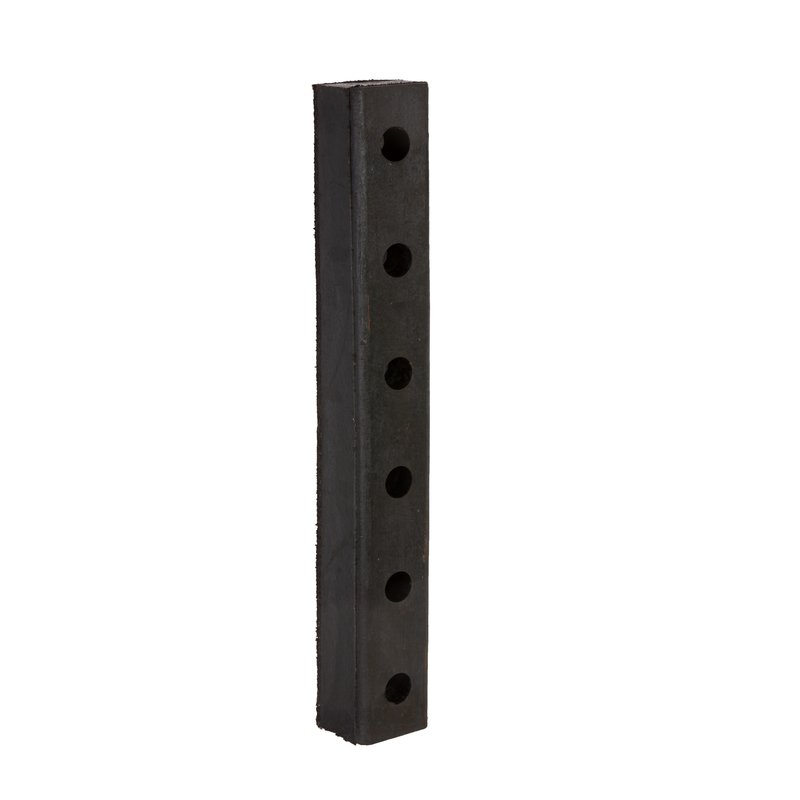

| TWB-30 |
115x780x75 |
3 |
9 |
6 |
TWB-F4 |
Manufacturer: Thorworld Industries Ltd. Most products designed and manufactured in the UK at Thorworld's Chesterfield factory.
